AVR Microcontroller-Based Clock System with LED Matrix Display

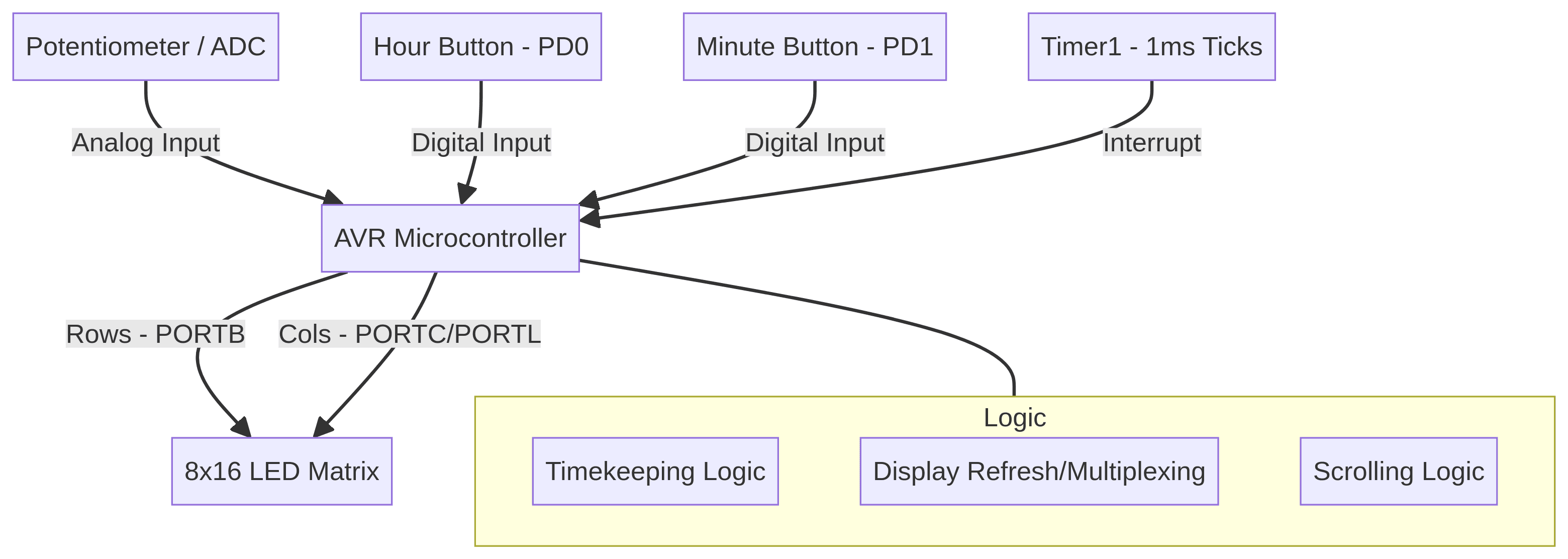

This project explores the development of a sophisticated digital clock system using an AVR microcontroller (ATmega series). By combining precise hardware timing with dynamic software logic, the system displays a scrolling real-time clock on an 8x16 LED matrix and allows for intuitive time-setting via a potentiometer and push buttons.

We engineered a real-time embedded system — interrupt-driven, ADC-integrated, and multiplexed at the hardware level.

This wasn’t a simulation.

It was a fully deployed AVR microcontroller clock system running on an 8x16 LED matrix with live time adjustment, scrolling display logic, and hardware-level control.

And every part of it was designed with embedded discipline — not shortcuts.

The Core Engineering Objective

Before writing a single line of code, the focus was clear:

Build a precise real-time clock
Display it dynamically on an 8x16 LED matrix

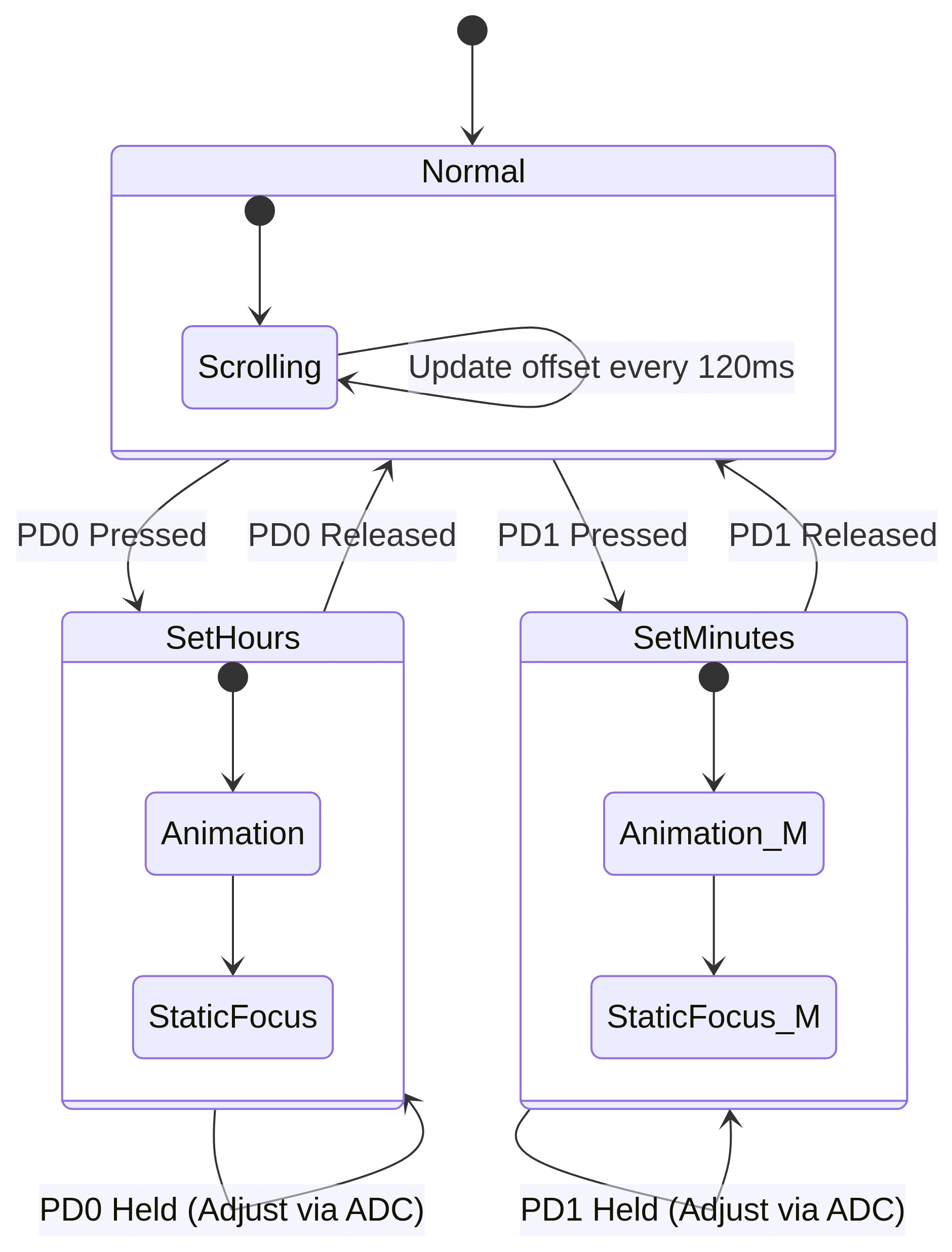

Enable interactive time adjustment
Ensure efficient resource usage
Maintain clean modular embedded architecture

This was not about printing time on an LCD.

It was about mastering:

Timer interrupts
ADC conversion
GPIO manipulation
Matrix multiplexing
Real-time state management

Final Thought

Embedded engineering isn’t about blinking LEDs. It’s about control, timing, structure, and discipline.

This AVR LED Matrix Clock proves that even a simple device can be engineered with precision — if you respect the fundamentals.

Build systems. Not just projects.
